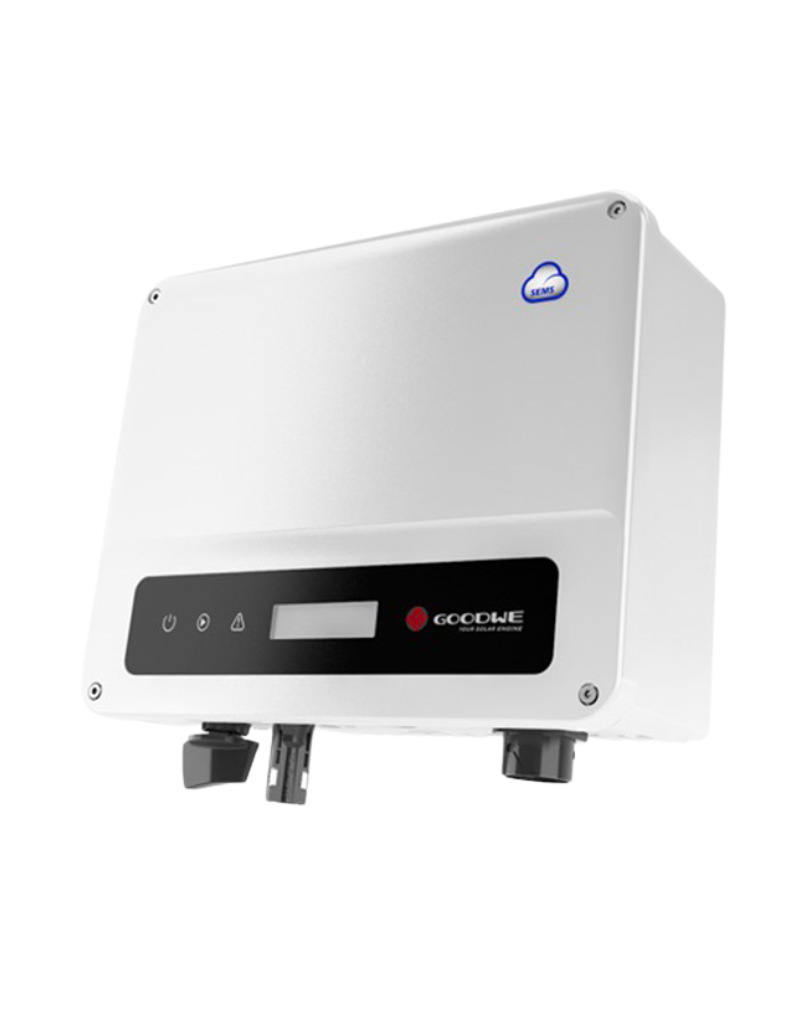

GoodWe IV GW GW700-XS (+DC-SWITCH/WIFI)
Μονοφασικός Μετατροπέας Ρεύματος Χωρίς Μετασχηματιστή
Solar Inverter Goodwe IV GW GW700-XS (+DC-SWITCH/WIFI)
Solar Inverter Goodwe IV GW GW700-XS (+DC-SWITCH/WIFI)
Περιγραφή
GoodWe GW700-XS Single Phase Inverter
XS series model from GoodWe is an ultra-small single phase, 1-MPPT residential solar inverter specifically designed to bring comfort and quiet operation as well as high efficiency to households. Its capacity ranges from 0.7kW to 3.0kW and its most outstanding characteristics are its light weight, which is 5.8kg, and its extremely small size, equivalent to an A4-sized piece of paper, which makes it particularly easy to carry & install.
XS series inverters are equipped with 30% DC oversizing capability which allows full load output during extreme weather conditions and it’s able to achieve a maximum European efficiency of 97.2%.
An optional LAN/WIFI communication offers customers different monitoring methods to cater for different needs. Customers are able to choose the most convenient way to monitor their solar systems. It also allows the customer to switch into another monitoring method after installation.
Technical details
|
Number of string inputs (pcs): |
1 |
|
Display: |
with display |
|
Arc Fault Circuit Interrupter: |
yes |
|
Interface 1: |
RS485 |
|
AC nominal power (kVA): |
0,70 |
|
Interface 2: |
W-Lan |
|
Max. AC power (kVA): |
0,80 |
|
Topology: |
transformerless |
|
Max. generator power DC (kWp): |
0,91 |
|
Step-Up converter: |
no |
|
Max. input voltage DC (V): |
500,00 |
|
Maximum voltage input Mpp (V): |
450 |
|
Feed-in phases: |
1 |
|
Max. input current (A): |
15,00 |
|
European efficiency (%): |
96,00 |
|
Max. efficiency (%): |
97,20 |
|
Degree of protection (IP): |
IP65 |
|
Number of Mpp-Trackers: |
1 |
|
Minimum voltage input Mpp (V): |
40 |
