GoodWe IV GW GW8K-DT(+DC-SWITCH/WIFI)

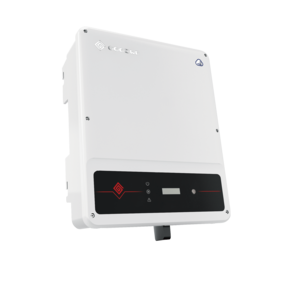

GoodWe GW8K-DT 3-phase Solar Inverter

GoodWe SDT G2 series three phase, 2-MPPT solar inverter is one of the best options available in the residential & commercial sectors owing to its technical strengths, which make it one of the most productive inverters in the market.
High efficiency of (98.3%), the enhanced oversizing and overloading capabilities and the fact that it does not require a null line for installation, SDT G2 represents an outstanding improvement in the industry.

With 50% DC input oversizing, 10% AC output overloading capability, it drives this inverter to its full capacity by adding extra reflections from the backside of bifacial panels, to increase your power output under low solar radiation conditions.

Built-in Anti-reverse current
In regions where solar power is not allowed to be supplyed to the grid, installers can easily set an export limit through the GoodWe app with one simple-click, as SDT G2 has integrated a built-in anti-reverse current function into the inverter.

Arc-Fault circuit interrupter
Safety First! With AFCI, the inverter is able to detect arc fault failure, sending alarms through monitoring systems and breaking the circuit simultaneously. GoodWe does not only deliver efficiency, reliability, but security as well.

      Technical details

• Max. DC Input Power: 12000 W
• MPPT Input voltage range: 180-850 V
• Nominal Output Voltage: 400V, 3L/N/PE
• Protection Rating: IP65
• Display / Communication: LCD & LED / WiFi or LAN or RS485
• Weight: 16 kg

Watt  8 000 AC  8 000 W DC  12 000 W

Efficiency  97,6% Phase  3-phase MPPT  2

Display  Yes

Communication  Wifi,RS485

Optional  36-113369 GOO-EZLOGGER-PRO / 36-113372 GOO-WI-FI+LAN-KIT / 36-113374 GOO-4G-KIT-EC-MODULE / 36-113386 GOO-SEC-1000

DC connection  MC4 Optimizers  no

Enclosure protection  IP65

Dimensions  43,3 x 35,4 x 15,5 cm

Product warranty  5 years Extensions for  10 years 15 years 20 years

Certifications  BE NL LU DE ES

Packaging  12,0 per pallet
