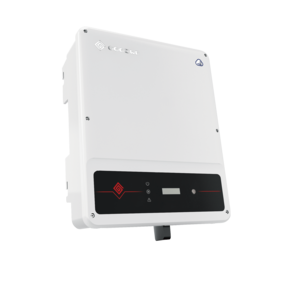

GoodWe IV GW GW6K-DT(+DC-SWITCH/WIFI)

GoodWe GW6K-DT 3-phase Solar Inverter

GoodWe SDT G2 series three phase, 2-MPPT solar inverter is one of the best options available in the residential & commercial sectors owing to its technical strengths, which make it one of the most productive inverters in the market.
High efficiency of (98.3%), the enhanced oversizing and overloading capabilities and the fact that it does not require a null line for installation, SDT G2 represents an outstanding improvement in the industry.

With 50% DC input oversizing, 10% AC output overloading capability, it drives this inverter to its full capacity by adding extra reflections from the backside of bifacial panels, to increase your power output under low solar radiation conditions.

Built-in Anti-reverse current
In regions where solar power is not allowed to be supplyed to the grid, installers can easily set an export limit through the GoodWe app with one simple-click, as SDT G2 has integrated a built-in anti-reverse current function into the inverter.

Arc-Fault circuit interrupter
Safety First! With AFCI, the inverter is able to detect arc fault failure, sending alarms through monitoring systems and breaking the circuit simultaneously. GoodWe does not only deliver efficiency, reliability, but security as well.

• Max. DC Input Power: 9000 W
• MPPT Input voltage range: 180-850 V
• Nominal Output Voltage: 400V, 3L/N/PE
• Protection Rating: IP65
• Display / Communication: LCD & LED / WiFi or LAN or RS485
• Size (Width x Height x Depth, mm): 354 x 433 x 147
• Weight: 15 kg

  Inverter Three Phase GOODWE GW6K-DT DT

  +DC-SWITCH WIFI (INVERTER ON-GRID 6KVA3PH)

  AC output

  Rated AC power: 6.0kW

  Maximum AC power: 6.6kVA

  Power phases: 3



  DC input

  Rated DC power: 9.0kWp

  Maximum DC input voltage (V): 1000.00

  Maximum input current (A): 12.50

  Minimum input voltage Mpp (V): 180

  Maximum input voltage Mpp (V): 850

  Arc fault circuit breaker: No
