GoodWe IV GW GW 500D-NS(+DC-SWITCH/WIFI)

PDFΕκτύπωσηEmail

1049,04 €
846,00 €
203,04 €

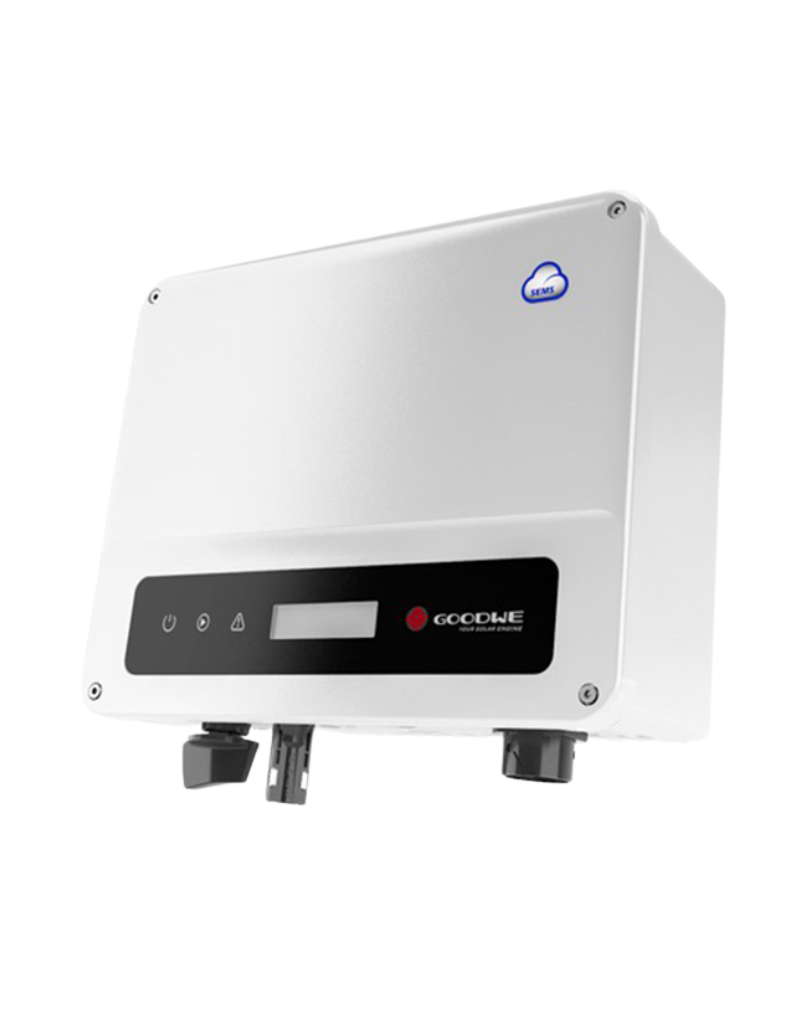

Inverter GoodWe IV GW GW 5000D-NS (+DC-Switch/Wifi)
Μονοφασικός Μετατροπέας Ρεύματος Χωρίς Μετασχηματιστή
Ρωτήστε για το προϊόν
Περιγραφή

Goodwe GW5000D-NS 12V

Goodwee GW5000D-NS Single Phase Photovoltaic Inverter (+ DC-Switch / Wifi): The GoodWe D-NS series inverter adopts state-of-the-art photovoltaic technology, designed with modern industrial means. Inheriting all the great features of the GoodWe SS and DS series, the D-NS series is much smaller in size and weight. Excellent cooling design, integrated software and hardware technology and guaranteed long life of these inverters.

New series of GOODWE inverters !

  • Up to 10 measurements
  • DC switch
  • Waterproof standard IP65
  • 45 ρους full load output
  • Built-in anti-rollover function
  • 30% lighter than others
  • 20% smaller volume
  • Large MPPT voltage range
  • Multiple monitoring and communication
  • Low noise without fan
AC output

Rated AC power: 5kW
Maximum AC power: 5kW

DC input

Rated DC power: 6.5kWp

Dimensions: 347 * 432 * 145 mm



Technical Data GW3000D-NS GW3600D-NS GW4200D-NS GW5000D-NS GW6000D-NS
PV String Input Data
Max. Input Power (W) 3900 4680 5460 6500 7200
Max. Input Voltage (V) 600 600 600 600 600
MPPT Range (V) 80 ~ 550 80 ~ 550 80 ~ 550 80 ~ 550 80 ~ 550
Start-up Voltage (V) 80 80 80 80 80
Nominal Input Voltage (V) 360 360 360 360 360
Max. Input Current per MPPT (A) 11/11 11/11 11/11 11/11 11/11
Max. Short Circuit Current per MPPT (A) 13.8 / 13.8 13.8 / 13.8 13.8 / 13.8 13.8 / 13.8 13.8 / 13.8
Number of MPPTs 2 2 2 2 2
Number of Strings per MPPT 1 1 1 1 1
AC Output Data
Nominal Output Power (W) 3000 * 1 3680 * 1 4200 * 1 5000 * 1 6000 * 1
Nominal Output Apparent Power (VA) 3000 3680 4200 5000 6000
Max. AC Apparent Power (VA) 3000 3680 4200 5000 6000
Nominal Output Voltage (V) 220/230 220/230 220/230 220/230 220/230
Nominal AC Grid Frequency (Hz) 50/60 50/60 50/60 50/60 50/60
Max. Output Current (A) 13.6 16 19 22.8 27.3
Nominal Output Current (A) 13.6 / 13 16 / 15.6 19 / 18.2 22.8 / 21.7 27.3 / 26.1
Output Power Factor ~ 1 (Adjustable from 0.8 leading to 0.8 lagging)
Max. Total Harmonic Distortion <3% <3% <3% <3% <3%
Efficiency
Max. Efficiency 97.8% 97.8% 97.8% 97.8% 97.8%
European Efficiency 97.5% 97.5% 97.5% 97.5% 97.5%
Protection
Anti-Islanding Protection Integrated Integrated Integrated Integrated Integrated
DC Reverse Polarity Protection Integrated Integrated Integrated Integrated Integrated
Residual Current Monitoring Unit Integrated Integrated Integrated Integrated Integrated
AC Over Current Protection Integrated Integrated Integrated Integrated Integrated
AC Short Protection Integrated Integrated Integrated Integrated Integrated
AC Over Voltage Protection Integrated Integrated Integrated Integrated Integrated
DC Surge Arrester     Type III
AC Surge Arrester     Type III
General Data
Operating Temperature Range (° C) -25 ~ 60 -25 ~ 60 -25 ~ 60 -25 ~ 60 -25 ~ 60
Relative Humidity 0 ~ 100% 0 ~ 100% 0 ~ 100% 0 ~ 100% 0 ~ 100%
Operating Altitude (m) £ 4000 £ 4000 £ 4000 £ 4000 £ 4000
Cooling Method     Natural Convection
Display     LCD / LCD / WiFi + App
Communication     RS485 / WiFi / LAN
Weight (Kg) 13 13 13 13 13.5
Size (Width × Height × Depth mm) 354 × 433 × 147 354 × 433 × 147 354 × 433 × 147 354 × 433 × 147 354 × 433 × 147
Ingress Protection Rating IP65 IP65 IP65 IP65 IP65
Night Power Consumption (W) <1 <1 <1 <1 <1
Topology     Transformerless
