GoodWe IV GW GW 4200D-NS(+DC-SWITCH/WIFI)

PDFΕκτύπωσηEmail

999,44 €
806,00 €
193,44 €
Μονοφασικός Μετατροπέας Ρεύματος Χωρίς Μετασχηματιστή

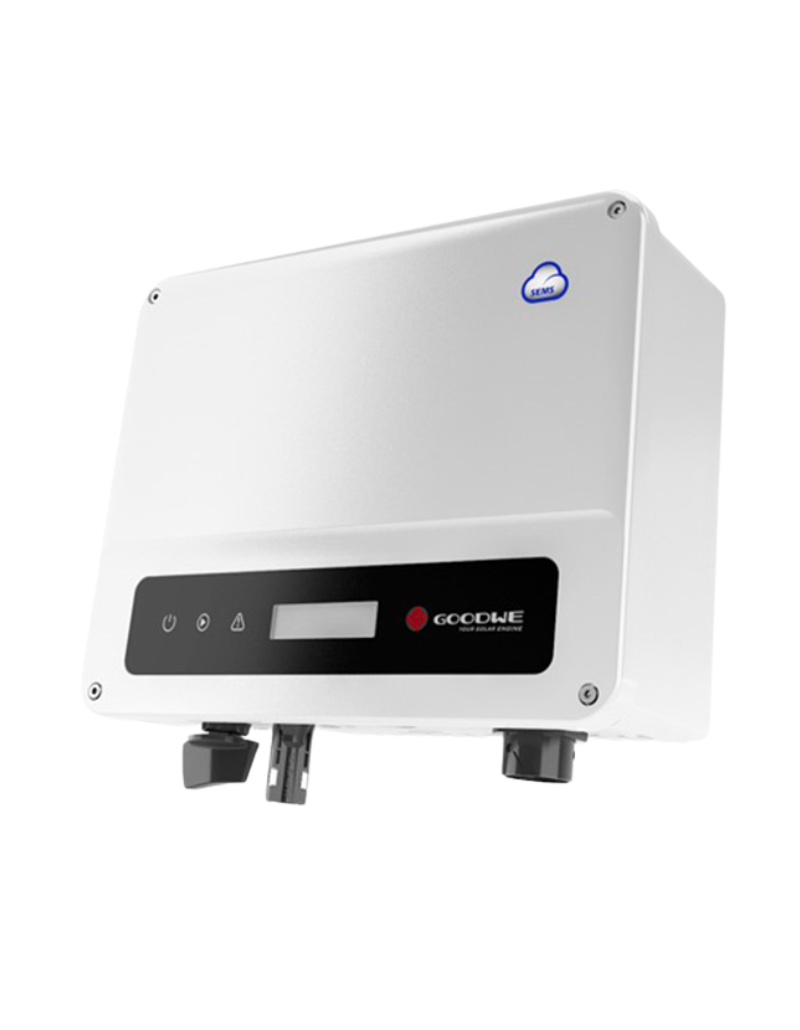

Inverter GoodWe IV GW GW 4200D-NS (+DC-Switch/Wifi)
Ρωτήστε για το προϊόν
Περιγραφή

GoodWe GW4200D-NS Single Phase Inverter

GoodWe’s DNS series is a single-phase Residental solar on-grid inverter with excellent compact size, comprehensive software and hardware technology. Manufactured for durability and longevity under modern industrial standards, the DNS series offers high efficiency and class-leading functionality, IP65, dustproofing and waterproofing and a fan-less, low-noise design. Tigo integrated (optional)

Built-in Anti-reverse function
Control the amount of power exported to the grid up to zero output, in compliance with your electricity utility’s requirements.

An optional LAN/WIFI communication offers for users different monitoring methods to cater for different needs. Users are able to choose the most convenient way to monitor their solar systems. It also allows to switch into another monitoring method after installation.

  • Max. DC Input Power: 5460 W
  • MPPT Input voltage range: 80-550 V
  • Nominal Output Voltage: 220/230 V
  • Protection Rating: IP65
  • Display / Communication: LCD & LED / RS485 or WiFi or LAN
  • Size (Width x Height x Depth, mm): 354 x 433 x 147
  • Weight: 13 kg



Technical Data GW3000D-NS GW3600D-NS GW4200D-NS GW5000D-NS GW6000D-NS
PV String Input Data
Max. Input Power (W) 3900 4680 5460 6500 7200
Max. Input Voltage (V) 600 600 600 600 600
MPPT Range (V) 80 ~ 550 80 ~ 550 80 ~ 550 80 ~ 550 80 ~ 550
Start-up Voltage (V) 80 80 80 80 80
Nominal Input Voltage (V) 360 360 360 360 360
Max. Input Current per MPPT (A) 11/11 11/11 11/11 11/11 11/11
Max. Short Circuit Current per MPPT (A) 13.8 / 13.8 13.8 / 13.8 13.8 / 13.8 13.8 / 13.8 13.8 / 13.8
Number of MPPTs 2 2 2 2 2
Number of Strings per MPPT 1 1 1 1 1
AC Output Data
Nominal Output Power (W) 3000 * 1 3680 * 1 4200 * 1 5000 * 1 6000 * 1
Nominal Output Apparent Power (VA) 3000 3680 4200 5000 6000
Max. AC Apparent Power (VA) 3000 3680 4200 5000 6000
Nominal Output Voltage (V) 220/230 220/230 220/230 220/230 220/230
Nominal AC Grid Frequency (Hz) 50/60 50/60 50/60 50/60 50/60
Max. Output Current (A) 13.6 16 19 22.8 27.3
Nominal Output Current (A) 13.6 / 13 16 / 15.6 19 / 18.2 22.8 / 21.7 27.3 / 26.1
Output Power Factor ~ 1 (Adjustable from 0.8 leading to 0.8 lagging)
Max. Total Harmonic Distortion <3% <3% <3% <3% <3%
Efficiency
Max. Efficiency 97.8% 97.8% 97.8% 97.8% 97.8%
European Efficiency 97.5% 97.5% 97.5% 97.5% 97.5%
Protection
Anti-Islanding Protection Integrated Integrated Integrated Integrated Integrated
DC Reverse Polarity Protection Integrated Integrated Integrated Integrated Integrated
Residual Current Monitoring Unit Integrated Integrated Integrated Integrated Integrated
AC Over Current Protection Integrated Integrated Integrated Integrated Integrated
AC Short Protection Integrated Integrated Integrated Integrated Integrated
AC Over Voltage Protection Integrated Integrated Integrated Integrated Integrated
DC Surge Arrester     Type III
AC Surge Arrester     Type III
General Data
Operating Temperature Range (° C) -25 ~ 60 -25 ~ 60 -25 ~ 60 -25 ~ 60 -25 ~ 60
Relative Humidity 0 ~ 100% 0 ~ 100% 0 ~ 100% 0 ~ 100% 0 ~ 100%
Operating Altitude (m) £ 4000 £ 4000 £ 4000 £ 4000 £ 4000
Cooling Method     Natural Convection
Display     LCD / LCD / WiFi + App
Communication     RS485 / WiFi / LAN
Weight (Kg) 13 13 13 13 13.5
Size (Width × Height × Depth mm) 354 × 433 × 147 354 × 433 × 147 354 × 433 × 147 354 × 433 × 147 354 × 433 × 147
Ingress Protection Rating IP65 IP65 IP65 IP65 IP65
Night Power Consumption (W) <1 <1 <1 <1 <1
Topology     Transformerless
