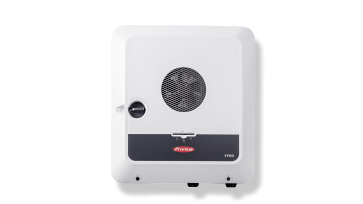

Fronius IVH FR SYMO GEN24 3.0 PLUS
Τριφασικός Υβριδικός Μετατροπέας Ρεύματος
Fronius IVH FR SYMO GEN24 3.0 PLUS
Fronius IVH FR SYMO GEN24 3.0 PLUS
Περιγραφή
Fronius IVH FR SYMO GEN24 3.0 PLUS
INVERTER FOR PRIVATE PV SYSTEMS WITH PV POINT OR FULL BACKUP
Our three-phase Fronius GEN24 Plus hybrid inverter is the perfect heart for private photovoltaic systems. The Fronius GEN24 Plus with its PV Point provides an integrated basic backup power supply or even a comprehensive backup power solution with the option to connect a battery system.
The Fronius GEN24 Plus hybrid inverter enables energy self-sufficiency for electricity, heating, cooling and e-mobility with the use of a battery system. This means that the Fronius GEN24 Plus with Full Backup has a backup power solution that can even supply 3-phase loads, such as heat pumps. What’s more, the Multi Flow Technology lets the hybrid inverter supply parallel energy flows in the system, even in backup power mode.
PRODUCT DETAILS
Technical data
INPUT DATA
|
Number of MPP trackers |
2 |
|
Max. PV input power |
3150 W |
|
Max. input current (Idc max) |
12,5 A / 12,5 A |
|
Max. short circuit current, module array* |
20,0 A / 20,0 A |
|
DC input voltage range (Udc min - Udc max) |
80-1000 V |
|
Feed-in start voltage (Udc start) |
80 V |
|
Nominal input voltage (Udc,r) |
610 V |
|
MPP voltage range (Umpp min - Umpp max) |
125-800 V |
|
Usable MPP voltage range |
80-800 V |
|
Number of DC connections |
2+1 |
|
Max. PV generator power (Pdc max) |
4,5 kWpeak |
OUTPUT DATA
|
AC nominal output (Pac,r) |
3000 W |
|
Max. output power (Pac max) |
3000 VA |
|
Max. grid power demand |
10 VA |
|
Max. AC output current |
8 A |
|
Grid connection (Uac,r) |
3~NPE 230V / 400V, 3~NPE 220V / 380V |
|
AC voltage range (Umin - Umax) |
154-280 V |
|
Frequency (fr) |
50 / 60 Hz |
|
Frequency range (fmin - fmax) |
45-66 Hz |
|
Total harmonic distortion |
<3% @Pnom (230/400VAC 50Hz) |
|
Power factor (cos φac,r) |
0,7-1 ind,/cap, |
|
Back-up power |
1 ~ NPE 220 V / 230 V |
|
Nom. AC-Ausgangsstrom (380VAC) |
4,5 A |
|
Nom. AC-Ausgangsstrom (400VAC) |
4,3 A |
GENERAL DATA
|
Length |
530 mm |
|
Width |
474 mm |
|
Height |
530 mm |
|
Depth |
165 mm |
|
Weight |
15,61 kg |
|
Weight incl. packaging |
19,35 kg |
|
Degree of protection |
IP66 |
|
Protection class |
1 |
|
Overvoltage category (DC / AC) 1) |
2/3 |
|
Night-time consumption |
<10 W |
|
Inverter design |
Transformerless |
|
Cooling |
Regulated air cooling |
|
Installation |
Indoor and outdoor installation |
|
Ambient temperature range |
-25 - +60°C |
|
Permitted humidity |
0 - 100% |
|
Max. altitude 2) |
3000m / 4000m |
|
DC PV connection technology |
3x DC+ and 3x DC- push-in spring terminals 2.5 - 10 mm² |
|
DC battery connection technology |
1x BATT+ and 1x BATT- push-in spring terminals 2.5 - 10 mm² |
|
AC connection technology |
5 pole AC push-in spring terminals 1.5 - 10 mm² 3 pole backup power push-in spring terminals 1.5mm² - 10mm² 5x PE-screw terminals 2.5 - 16 mm² |
|
Certificates and compliance with standards |
IEC 62109, IEC 62116, IEC 61727, IEC 62909, VDE 0126, VDE AR-N4105, AS/NZS 4777.2, EN 50549, CEI 0-21, G 98, R25 6) |
|
Back-up power functions |
PV Point |
|
Sound emissions |
36 dB(A) |
|
Compatible batteries 5) |
BYD Battery-Box Premium HVS/HVM 4) & LG RESU FLEX |
|
Interference emission class |
B |
EFFICIENCY
|
Max. efficiency (PV - grid) |
98,1 % |
|
European efficiency (ηEU) |
96,7% |
|
η at 5% Pac,r 3) |
86,8% |
|
η at 10% Pac,r 3) |
92,4% |
|
η at 20% Pac,r 3) |
95,7% |
|
η at 25% Pac,r 3) |
96,3% |
|
η at 30% Pac,r 3) |
97,0% |
|
η at 50% Pac,r 3) |
97,6% |
|
η at 75% Pac,r 3) |
97,9% |
|
η at 100% Pac,r 3) |
98,1% |
|
MPP adaptation efficiency |
99,9% |
PROTECTION DEVICES
|
DC insulation measurement |
Yes |
|
Overload behaviour |
Interface to ripple control receiver, energy management |
|
DC disconnector |
Yes |
|
DC Reverse polarity protection |
Yes |
INTERFACES
|
WLAN / 2x Ethernet LAN |
Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON) |
|
6x digital in/out + 6x digital in |
Interface to ripple control receiver, energy management |
|
Emergency stop (WSD) |
Yes |
|
Datalogger and web server |
Included |
|
2x RS485 |
Modbus RTU SunSpec (third-party supplier) / Fronius Smart Meter, battery, Fronius Ohmpilot |
OUTPUT DATA PV POINT
|
Max continuous output power |
3000 VA |
|
Nom. output current (Iac max) |
13 A |
|
Grid connection |
1 ~ NPE 220 V / 230 V |
|
Frequency |
50 Hz / 60 Hz |
|
Max. switchover time PV-Point |
20 s |
|
Frequency in backup power mode |
53 Hz |
BATTERY CONNECTION
|
Number of DC connections |
1 |
|
Max. input current (Idc max.) |
12,5 A |
|
Max. input / output power (Depending on the connected battery) |
3150 W |
|
Min. DC input voltage |
160 V |
|
Max. DC input voltage |
531 V |
