Fronius IV FR SYMO LIGHT 3.0-3-M
Τριφασικοί Μετατροπείς Ρεύματος Χωρίς Μετασχηματιστή

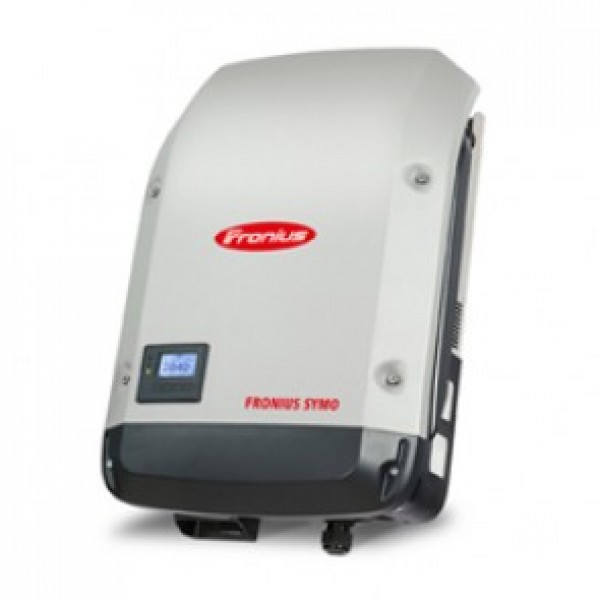

Fronius Symo 3.0-3-M
Fronius Symo 3.0-3-M
Περιγραφή
Τριφασικοί Μετατροπείς Ρεύματος Χωρίς Μετασχηματιστή
Fronius Symo 3.0-3-M
MAXIMUM FLEXIBILITY FOR THE APPLICATIONS OF TOMORROW.
With power categories ranging from 3.0 to 20.0 kW, the transformerless Fronius Symo is the three-phase inverter for every system size. Owing to the SuperFlex Design, the Fronius Symo is the perfect answer to irregularly shaped or different roof orientations. A WLAN or Ethernet internet connection as standard plus easy integration of third-party components make the Fronius Symo one of the most communicative inverters on the market. Furthermore, the meter interface permits dynamic feed-in management and a clear visualisation of consumption.
PRODUCT DETAILS
TECHNICAL DATA
INPUT DATA
|
Number of MPP trackers |
2 |
|
Max. input current (Idc max) |
16,0 / 16,0 A |
|
Max. short circuit current, module array* |
31 / 31 A |
|
DC input voltage range (Udc min - Udc max) |
150 - 1000 V |
|
Feed-in start voltage (Udc start) |
200 V |
|
Nominal input voltage (Udc,r) |
595 V |
|
MPP voltage range (Umpp min - Umpp max) |
150 - 800 V |
|
Usable MPP voltage range |
150 - 800 V |
|
Number of DC connections |
2 + 2 |
|
Max. PV generator power (Pdc max) |
6 kWpeak |
OUTPUT DATA
|
AC nominal output (Pac,r) |
3000 W |
|
Max. output power (Pac max) |
3000 VA |
|
AC output current (Iac nom) |
4,3 A |
|
Grid connection (Uac,r) |
3~ NPE 400/230, 3~ NPE 380/220 V |
|
AC voltage range (Umin - Umax) |
150 - 280 V |
|
Frequency (fr) |
50 / 60 Hz |
|
Frequency range (fmin - fmax) |
45 - 65 Hz |
|
Total harmonic distortion |
< 3 % |
|
Power factor (cos φac,r) |
0,85 - 1 ind,/cap, |
GENERAL DATA
|
Width |
431 mm |
|
Height |
645 mm |
|
Depth |
204 mm |
|
Weight |
19,9 kg |
|
Degree of protection |
IP 65 |
|
Protection class |
1 |
|
Overvoltage category (DC / AC) 1) |
2 / 3 |
|
Night-time consumption |
< 1 W |
|
Inverter design |
Transformerless |
|
Cooling |
Regulated air cooling |
|
Installation |
Indoors and outdoors |
|
Ambient temperature range |
-25°C - +60°C |
|
Permitted humidity |
0 - 100 % |
|
Max. altitude 2) |
2,000 m / 3,400 m |
|
DC connection technology |
4x DC+ and 4x DC- screw terminals 2.5 - 16 mm² (16 mm² without ferrules) |
|
AC connection technology |
5-pin AC screw terminals 2.5 - 16 mm² (16 mm² without ferrules) |
|
Certificates and compliance with standards |
ÖVE / ÖNORM E 8001-4-712, DIN V VDE 0126-1-1/A1, VDE AR N 4105, IEC 62109-1/-2, IEC 62116, IEC 61727, AS 3100, AS 4777-2, AS 4777-3, CER 06-190, G83/2, UNE 206007-1, SI 4777, CEI 0-21, NRS 097 |
|
Interference emission class |
B |
EFFICIENCY
|
Max. efficiency (PV - grid) |
98 % |
|
European efficiency (ηEU) |
96,5 % |
|
η at 5% Pac,r 3) |
79,8 / 85,1 / 80,8 % |
|
η at 10% Pac,r 3) |
86,5 / 91,6 / 87,7 % |
|
η at 20% Pac,r 3) |
90,8 / 95,3 / 93,0 % |
|
η at 25% Pac,r 3) |
91,9 / 96,0 / 94,2 % |
|
η at 30% Pac,r 3) |
92,8 / 96,5 / 95,1 % |
|
η at 50% Pac,r 3) |
94,3 / 97,5 / 96,5 % |
|
η at 75% Pac,r 3) |
94,9 / 97,8 / 97,2 % |
|
η at 100% Pac,r 3) |
95,0 / 98,0 / 97,4 % |
|
MPP adaptation efficiency |
> 99,9 % |
PROTECTION DEVICES
|
DC insulation measurement |
Yes |
|
Overload behaviour |
Operating point shift, power limitation |
|
DC disconnector |
Yes |
|
DC Reverse polarity protection |
Yes |
INTERFACES
|
WLAN / Ethernet LAN |
Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON) |
|
6 inputs and 4 digital inputs/outputs |
Interface to ripple control receiver |
|
USB (type A socket) 4) |
Data logging, inverter update via USB flash drive |
|
2x RS422 (RJ45 socket) 4) |
Fronius Solar Net |
|
Signalling output 4) |
Energy management (floating relay output) |
|
Datalogger and web server |
Integrated |
|
External input 4) |
S0 meter connection / Evaluation of overvoltage protection |
|
RS485 |
Modbus RTU SunSpec or meter connection |
