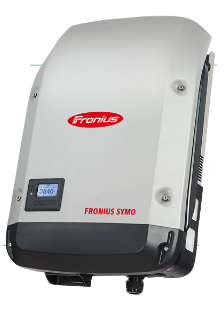

Fronius IV FR SYMO 7.0-3-M
Τριφασικός Μετατροπέας Ρεύματος Χωρίς Μετασχηματιστή
Fronius IV FR SYMO 7.0-3-M
Fronius IV FR SYMO 7.0-3-M
Περιγραφή
Fronius IV FR SYMO 7.0-3-M
With power categories ranging from 3.0 to 20.0 kW, the transformerless Fronius Symo is the three-phase inverter for every system size. Owing to the SuperFlex Design, the Fronius Symo is the perfect answer to irregularly shaped or different roof orientations. A WLAN or Ethernet internet connection as standard plus easy integration of third-party components make the Fronius Symo one of the most communicative inverters on the market. Furthermore, the meter interface permits dynamic feed-in management and a clear visualization of consumption.
Quick start: the attraction of the Fronius inverter Symo 7.0-3-M is its low voltage start up. As soon as the voltage starts, your inverter will transform energy to generate electricity. Performance gain on your photovoltaic installation.
Smart grid ready: Fronius' Smart Grid Ready solution enables communication inverter with energy suppliers in order to adjust its injection power in the electricity grid and avoid any cuts. This futuristic solution is a step forward in the management of power grids. The inverter provides data such as power or voltage, enabling energy suppliers to assess network conditions.
Management integrated with plugs: The Fronius inverter Symo 7.0-3-M is the first inverter who manage your self-consumption smartly. Indeed this inverter integrates output relay contacts. These relays allow you to activate your remote plug regarding solar power available or a chosen time your consumables of your home. This inverter optimizes your electrical consumption of your home and activates them. No need to be present, you manage remotely the self-consumption of your home.
None injection solar excess: The Fronius inverter Symo 7.0-3-M is a smart inverter that regulate your solar panels voltage to your strictly need. Eg, you have a need of 2000W, your solar panels produce 2500W. The inverter will regulate the voltage to have exactly 2000W. You don't inject any power into the electrical grid. It is now prohibited to inject the solar excess without contract.
Triphase inverter: connect your Fronius inverter Primo 7.0-3-M on your house to a triphase network.
TECHNICAL DATA
INPUT DATA
|
Number of MPP trackers |
2 |
|
Max. input current (Idc max) |
16 / 16 A |
|
Max. short circuit current, module array |
24 / 24 A |
|
DC input voltage range (Udc min - Udc max) |
150 - 1000 V |
|
Feed-in start voltage (Udc start) |
200 V |
|
Nominal input voltage (Udc,r) |
595 V |
|
MPP voltage range (Umpp min - Umpp max) |
228 - 800 V |
|
Usable MPP voltage range |
150 - 800 V |
|
Number of DC connections |
2 + 2 |
|
Max. PV generator power (Pdc max) |
14 kWpeak |
GENERAL DATA
|
Weight |
21,9 kg |
|
Width |
431 mm |
|
Height |
645 mm |
|
Depth |
204 mm |
|
Degree of protection |
IP 65 |
|
Protection class |
1 |
|
Overvoltage category (DC / AC) 1) |
2 / 3 |
|
Night-time consumption |
< 1 W |
|
Inverter design |
Transformerless |
|
Cooling |
Regulated air cooling |
|
Installation |
Indoors and outdoors |
|
Ambient temperature range |
-25°C - +60°C |
|
Permitted humidity |
0 - 100 % |
|
Max. altitude 2) |
2,000 m / 3,400 m |
|
DC connection technology |
4x DC+ and 4x DC- screw terminals 2.5 - 16 mm² (16 mm² without ferrules) |
|
AC connection technology |
5-pin AC screw terminals 2.5 - 16 mm² (16 mm² without ferrules) |
|
Certificates and compliance with standards |
ÖVE / ÖNORM E 8001-4-712, DIN V VDE 0126-1-1/A1, VDE AR N 4105, IEC 62109-1/-2, IEC 62116, IEC 61727, AS 3100, AS 4777-2, AS 4777-3, CER 06-190, G83/2, UNE 206007-1, SI 4777, CEI 0-21, NRS 097 |
|
Interference emission class |
B |
OUTPUT DATA
|
AC nominal output (Pac,r) |
7000 W |
|
Max. output power (Pac max) |
7000 VA |
|
AC output current (Iac nom) |
10,1 A |
|
Grid connection (Uac,r) |
3~ NPE 400/230, 3~ NPE 380/220 V |
|
AC voltage range (Umin - Umax) |
150 - 280 V |
|
Frequency (fr) |
50 / 60 Hz |
|
Frequency range (fmin - fmax) |
45 - 65 Hz |
|
Total harmonic distortion |
< 3 % |
|
Power factor (cos φac,r) |
0,85 - 1 ind,/cap, |
EFFICIENCY
|
Max. efficiency (PV - grid) |
98 % |
|
European efficiency (ηEU) |
97,6 % |
|
η at 5% Pac,r 3) |
88,7 / 93,1 / 89,0 % |
|
η at 10% Pac,r 3) |
92,0 / 95,9 / 94,7 % |
|
η at 20% Pac,r 3) |
94,5 / 97,3 / 96,3 % |
|
η at 25% Pac,r 3) |
95,1 / 97,6 / 96,7 % |
|
η at 30% Pac,r 3) |
95,4 / 97,7 / 97,0 % |
|
η at 50% Pac,r 3) |
95,9 / 98,0 / 97,5 % |
|
η at 75% Pac,r 3) |
95,9 / 98,0 / 97,6 % |
|
η at 100% Pac,r 3) |
95,8 / 97,9 / 97,5 % |
|
MPP adaptation efficiency |
> 99,9 % |
PROTECTION DEVICES
|
DC insulation measurement |
Yes |
|
Overload behaviour |
Operating point shift, power limitation |
|
DC disconnector |
Yes |
|
DC Reverse polarity protection |
Yes |
INTERFACES
|
WLAN / Ethernet LAN |
Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON) |
|
6 inputs and 4 digital inputs/outputs |
Interface to ripple control receiver |
|
USB (type A socket) 4) |
Data logging, inverter update via USB flash drive |
|
2x RS422 (RJ45 socket) 4) |
Fronius Solar Net |
|
Signalling output 4) |
Energy management (floating relay output) |
|
Datalogger and web server |
Integrated |
|
External input 4) |
S0 meter connection / Evaluation of overvoltage protection |
|
RS485 |
Modbus RTU SunSpec or meter connection |
